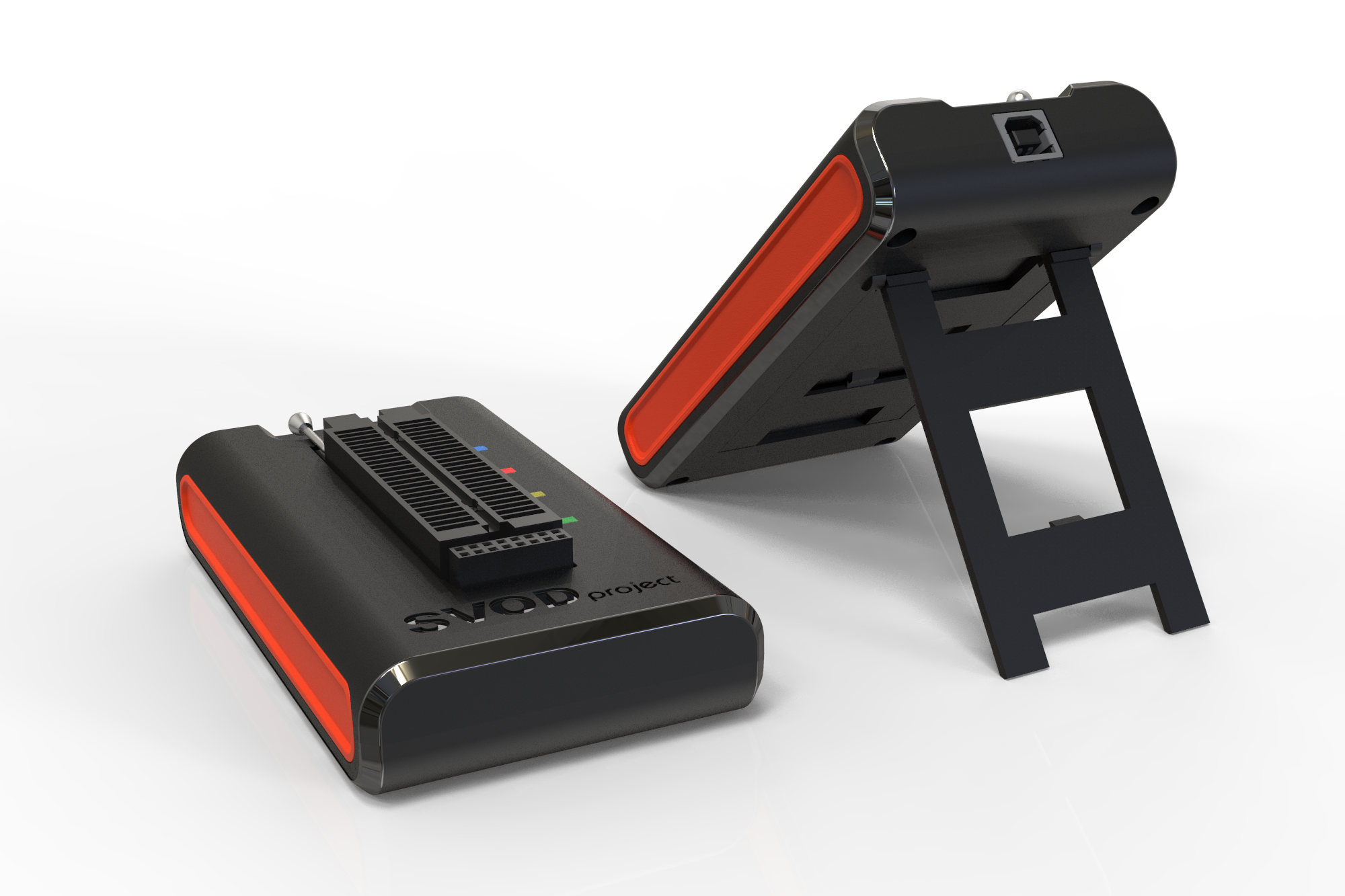

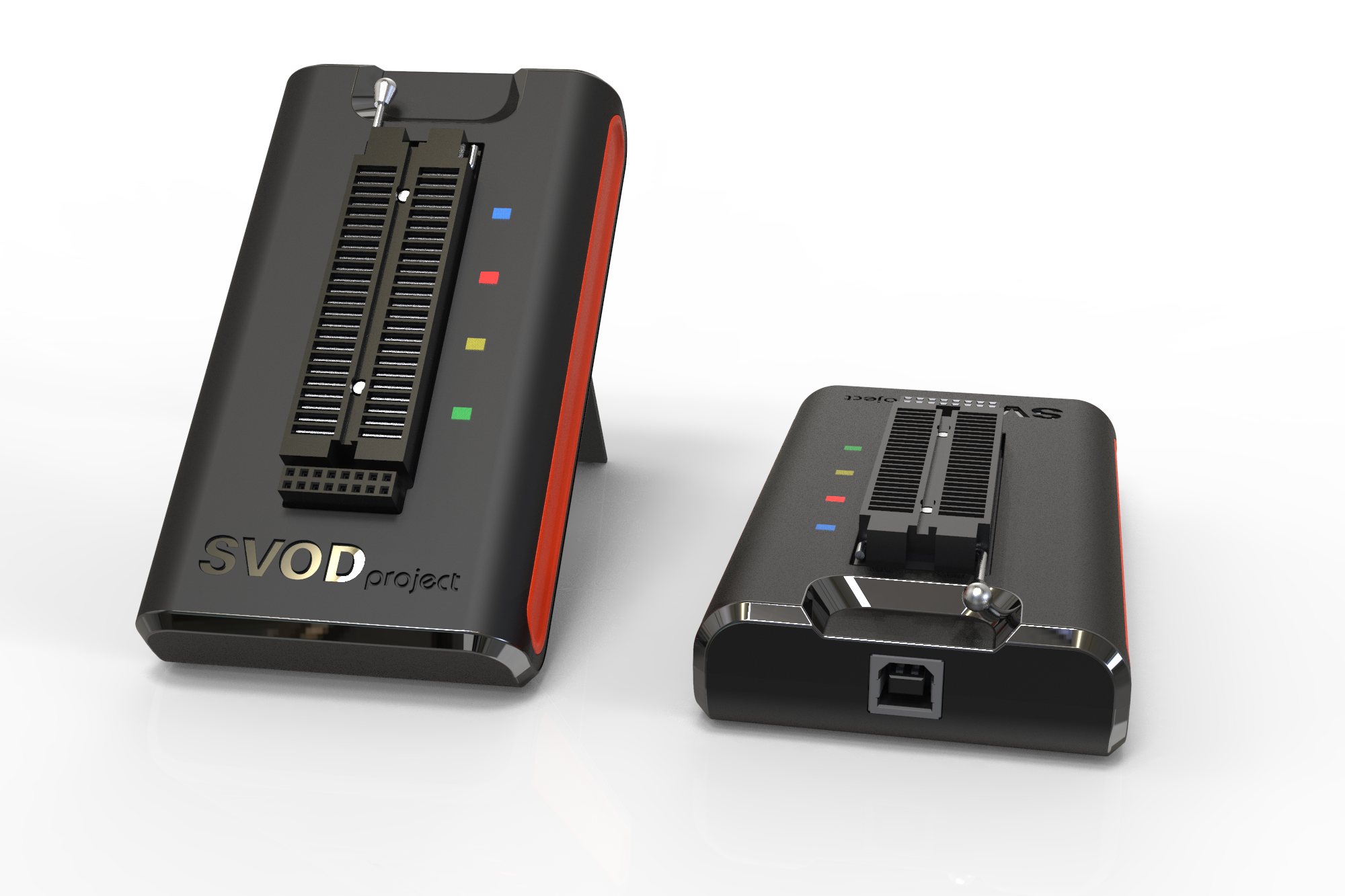

SVODprogrammer4 is a universal programmer.
- port for connecting to a computer: usb 2.0 high speed,
- high-speed ARM7 processor at 550 MHz,
- connection to IC: zif 48 + 16 pin connector
- number of input-output ports: 56
- supply voltage: 12V, 5V, 3.3V, 3.0V, 2.8V, 2.7V, 2.5V, 1.8v, 1.2V.
- work with EC ITE, ENE, NUVOTON, MEC, EPFxxx, Lattice. battery, read POST codes.
SPI, I2C, SMBUS, 1-Wire, NAND, NOR, EMMC, JTAG, UART, CAN, parallel synchronous and asynchronous protocols.
Automatic detection of "bad contact" when connecting IC.
